MaxZilla Lives!

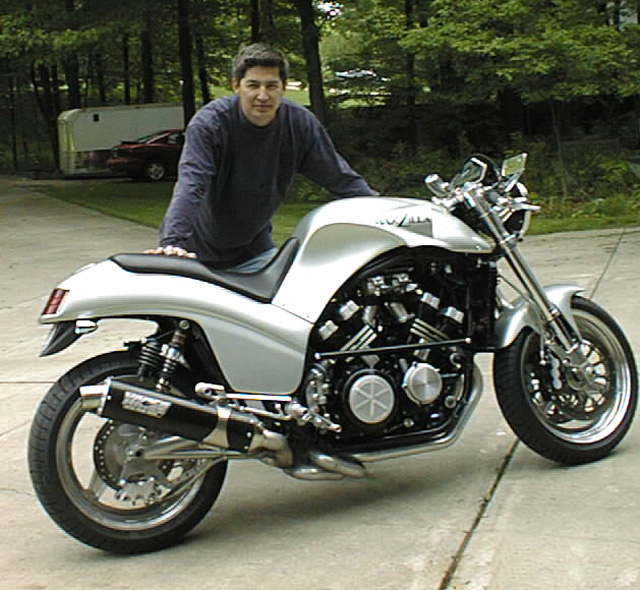

Me and Zilla.jpg (161023 bytes)

(This site continues the original site opened July 17, 1999 and closed with 1399 visits.)

Welcome!   Since Feb. 4, 2000  You are visitor   Hit Counter







For a rough  translation of this webpage,  select a language (flag) or use the pull-down menu below:

Brasileiro Bulgarian (CP 1251) Czech/ceski (CP 1250) Croatian/hrvatski (CP 1250) Danske Deutsch Espanol Finnish Français Greek/Aëëçíéeüo Hungarian/Magyar (CP 1250) Íslenska Italiano Japanese (Shift JIS) Nederlands Norsk Polish/polski (CP 1250) Portuguese Romanian Russian/?ónneeé (CP 1251) Serbian/srpski (Latin) Slovenian/slovenski (CP 1250) Svensk Welsh/'n Cymraeg




Start with a stock '94 V-Max ...

... a bike which had a serious attitude from 1985 , then an owner

... a bit  over the edge and you End  with

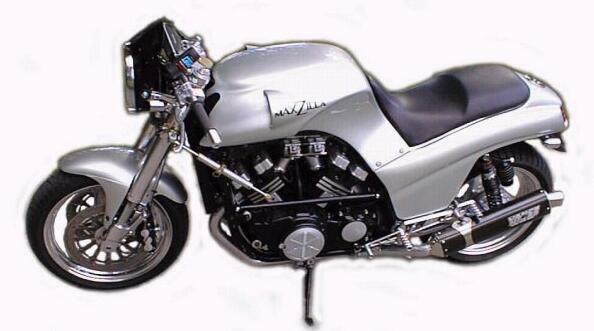

                  MaxZilla!

165 rwhp, 107 lb. torque unleashed!!! ... MaxZilla claws asphalt with 17" 190mm Radial











Over two years in the making

and soon beginning Phase 2

development, check



  "The Zilla's" specs below:



Comparison:

Yamaha V-Max   to  MaxZilla

Stock  Specifications:   vs.   MaxZilla  Specifications:

Engine Type

V4 1198cc DOHC       1500cc PCW
liquid-cooled
"Tourmaster"

Horsepower/Torque

110 rwhp/80 lb    165 rwhp/107 ft-lb

Bore/Stroke

76 X 66 mm                         85 X 66 mm

Dry Weight

580 pounds          540 pounds (est)

Comp Ratio

10.5:1                                    11.3:1

Front Suspen.

Telescopic          USD('94GSXR1100)

Carburetor

4/35mm Mikuni          4/39mmKeihins FCR

Rear Suspens.

Twin Shocks       WP14"Pro-Racers

Transmission

Five-speed                      Reversed Pattern

Front Brakes

298mm dual           320mm dual/6potTokico

Dimensions

90.6"x31.3"x45.7"          Updated Soon

Rear Brakes

282 mm single       10in single/4 pot PM

Seat Height

31.3"                                 Updated Soon

Front Tire

100/90-v18           120/60-17 ZR (Z4)

Wheelbase

62.6"                                  Updated Soon

Rear Tire

150/90-v15           190/50-17 ZR (Z4)

Ground Clear.

5.7"                                    Updated Soon

Rake

29 degrees             27 degrees



(click on any following image to enlarge)

    "Strike like lightning
leave the quake of thunder in their soul,
disappear in all but their memories."

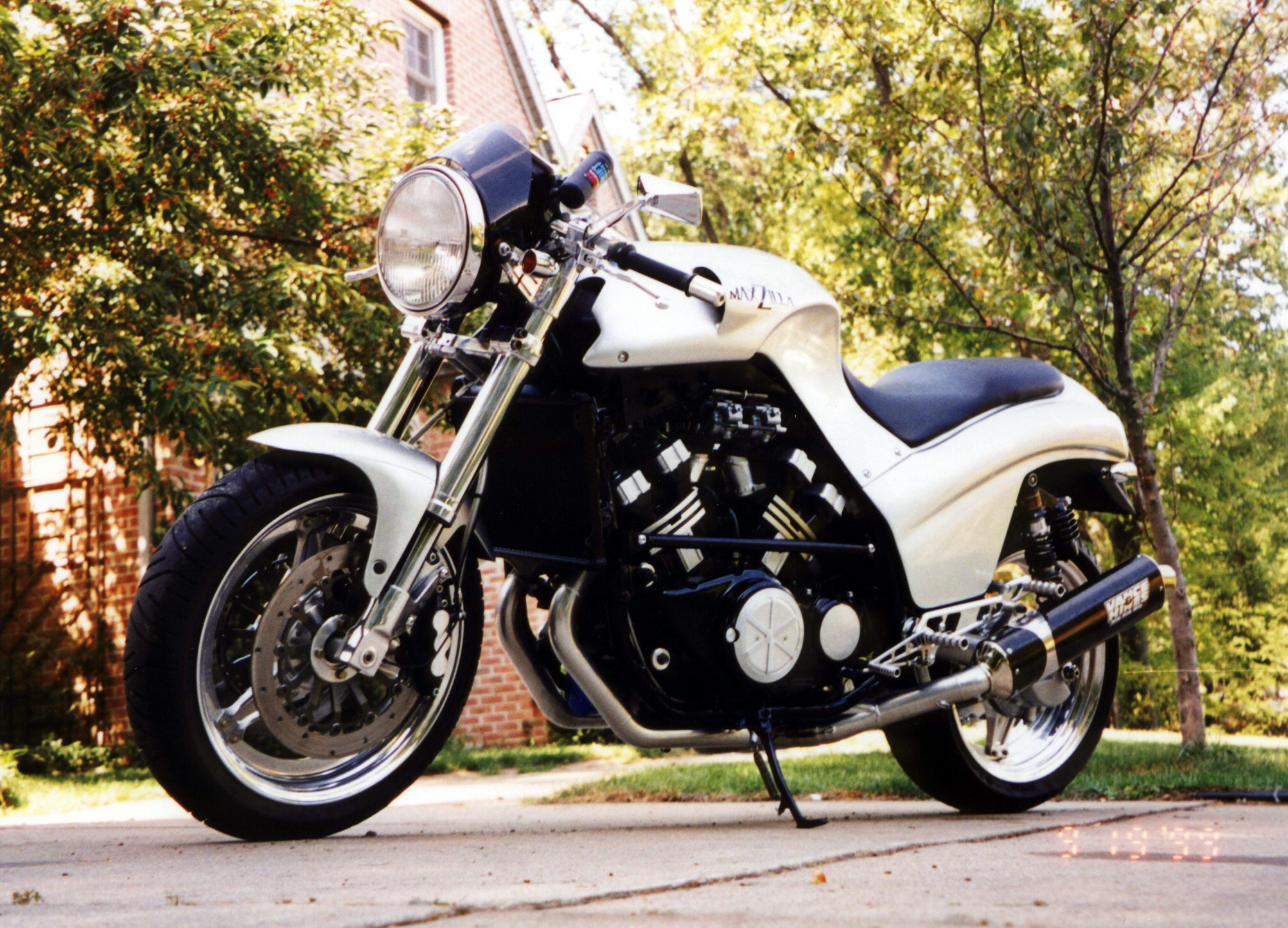

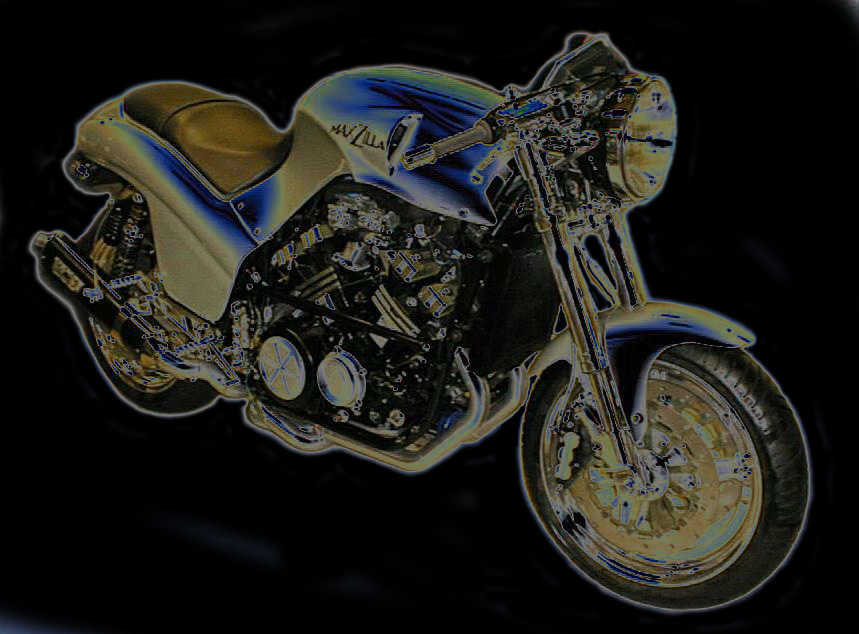

                               MaxZilla   MaxZilla_Rt_solar.jpg (193533 bytes)

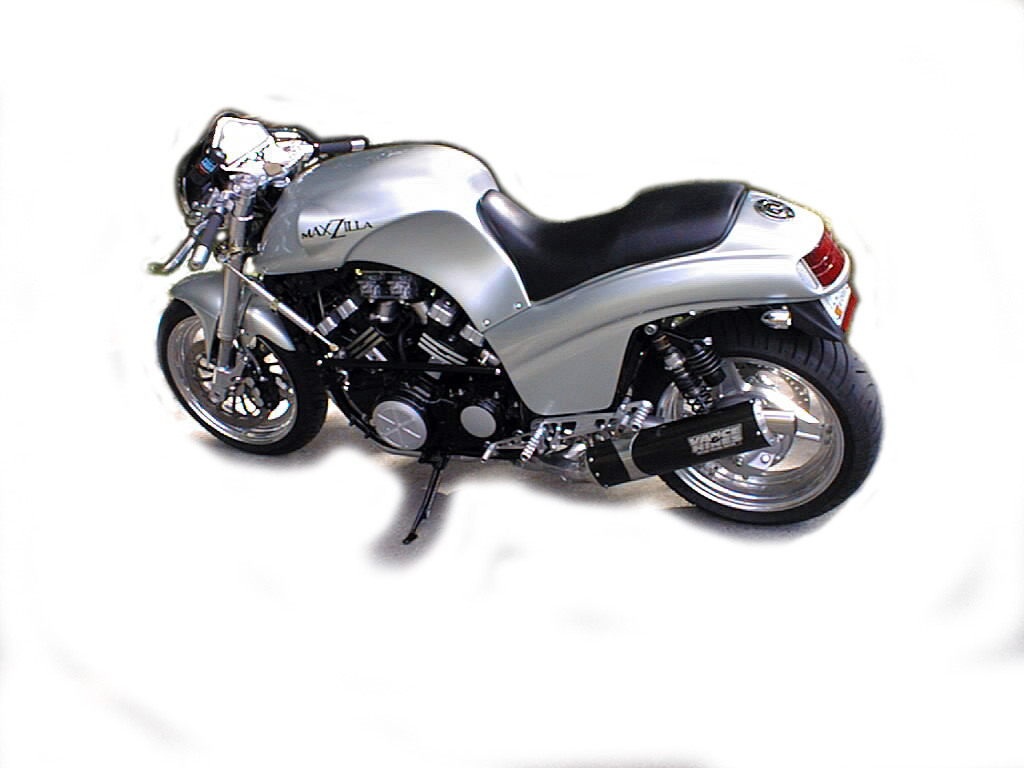

   Zilla_frt_mod.jpg (86490 bytes)                                        zilla_lr.jpg (137580 bytes)



 Got Download time?
>  'Zilla .avi movie (Windows Media Player 6.5mb)

Design goal:

  • MaxZilla's design goal was NOT for maximum power numbers, (although the numbers are as good as a Hayabusa!) but rather to create a V-Max true in spirit and concept to the original; i.e. retaining shaft drive, dual exhaust, two up seating, "in your face" styling (though modernized), but with better components, strengthened frame and swingarm, etc, and an emphasis on sport-bike type handling and the requisite parts where necessary. This is a true custom V-Max, but made as to look like an ultra high-quality production model of my dreams, blending contemporary with "retro" themes.


Specifications:

  • 1500 cc PCW Racing, "Tourmaster" engine with four 39 mm Keihin flatside carbs tuned by Jon Cornell of UFO Performance Cycles - produces 165 rear wheel horsepower, 107.1 foot-lbs. torque.

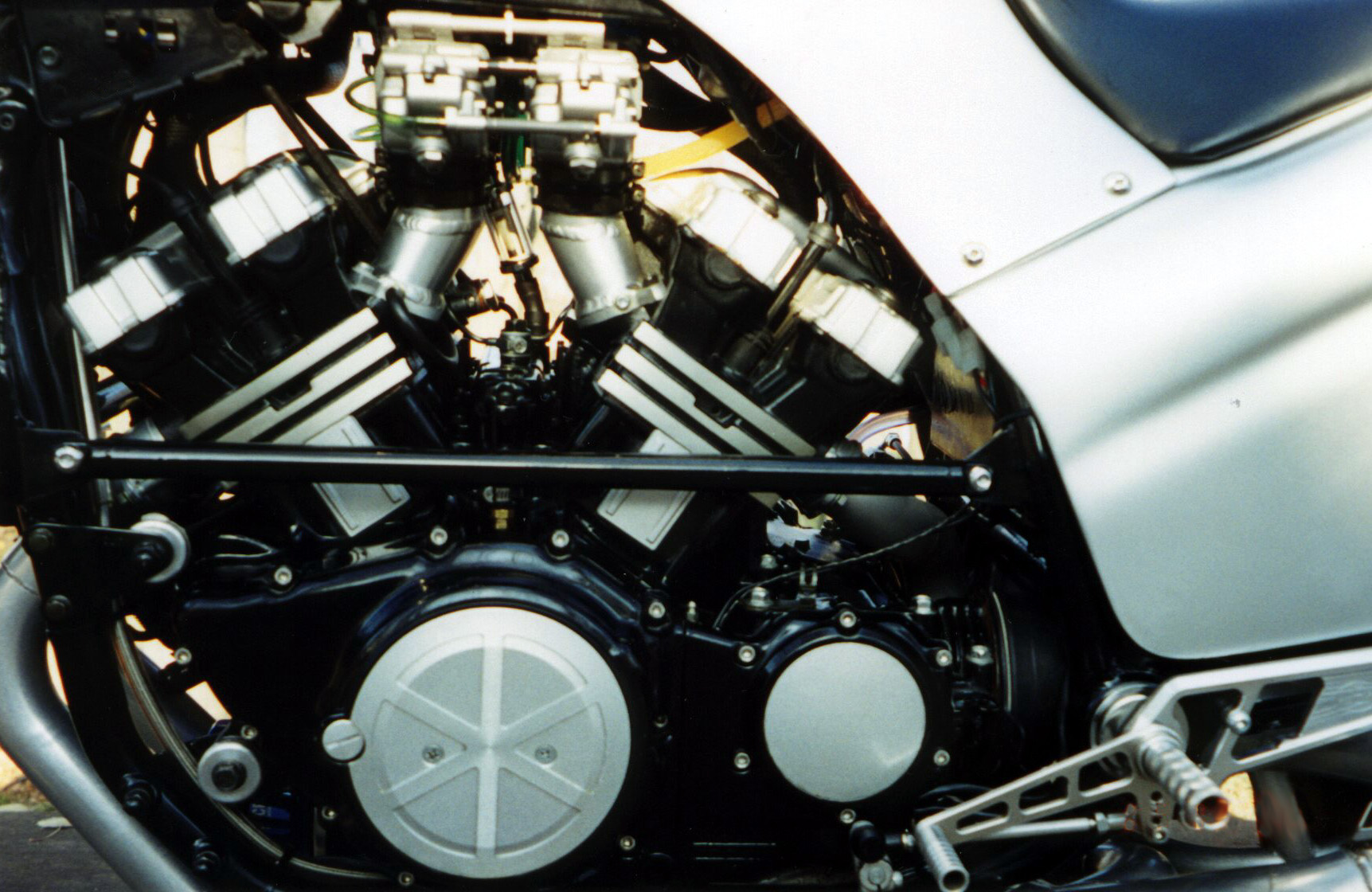

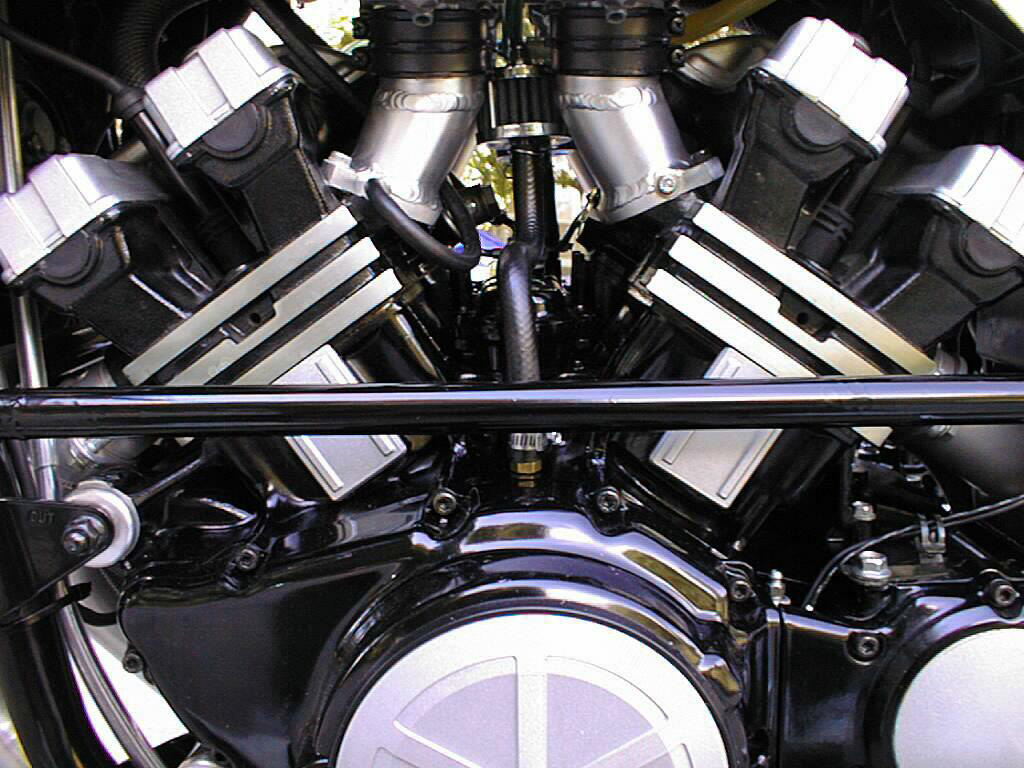

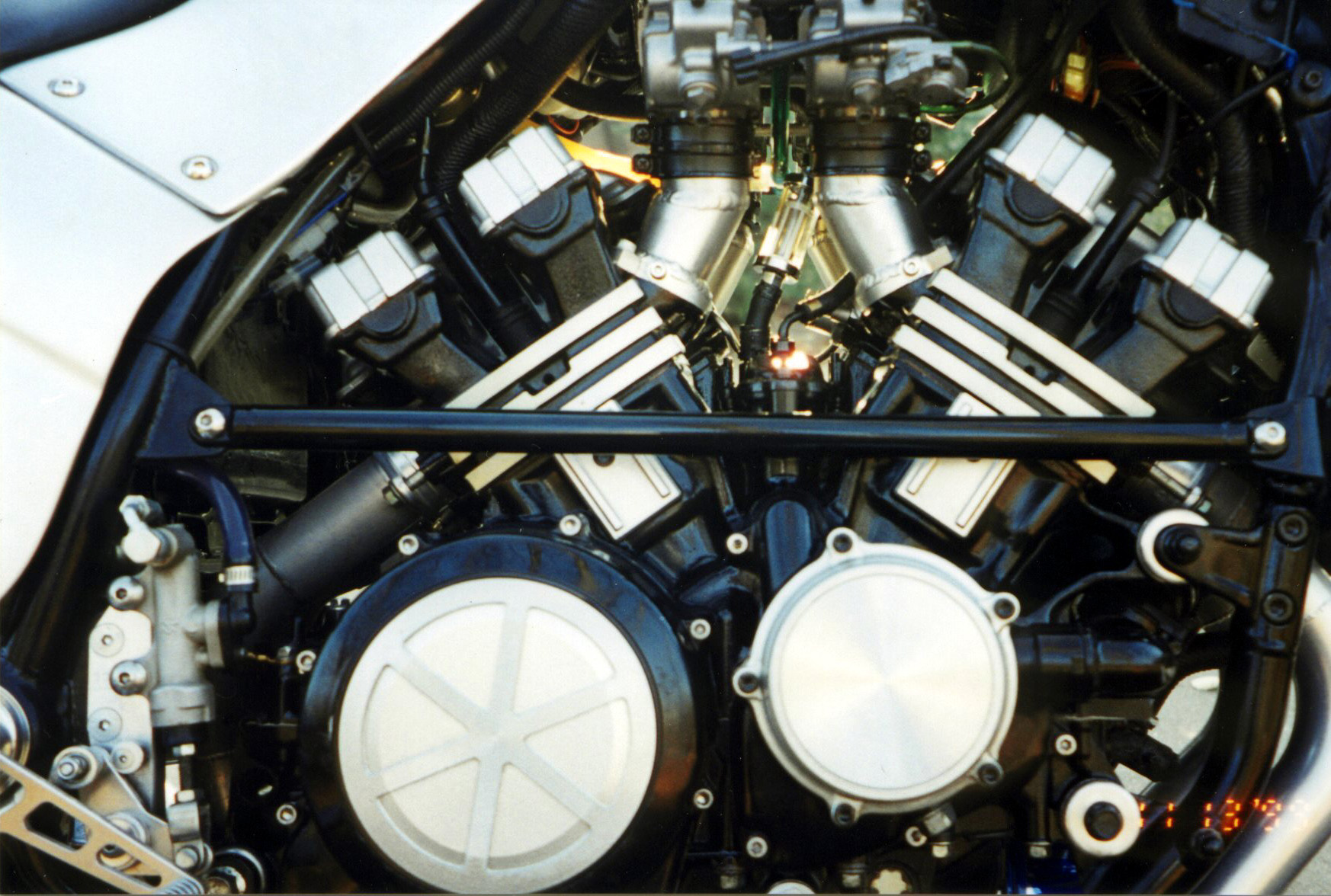

  • Zilla's Tourmaster 1500cc.jpg (238638 bytes)    EngineLft.jpg (474285 bytes)    EngineRt.jpg (536517 bytes)

  • engine details: 1500cc Tourmaster   85mm bore, 66mm stroke,  11.3 to 1 compression ratio
                             Stage 1 heads with bowl porting and Serdi valve job
                             PCW 03 cams .380" lift, 261 deg. of duration, adj. cam sprockets
                             Heavy duty valve springs and cam chains
                             Reworked shot peened and bushed connecting rods
                             Copper head gaskets
                             Double "D" clutch set up, revised prototype PCW springs
                             39mm CR downdraft carb kit

  • Suzuki GSXR-1100 USD front fork with increased rate springs, clip-ons, dual 320 mm drilled front rotors, 6- piston Tokico front brakes. 4 piston PM rear "underslung" calipers with drilled rotor.  Deraked from stock 29 to 27 degrees.

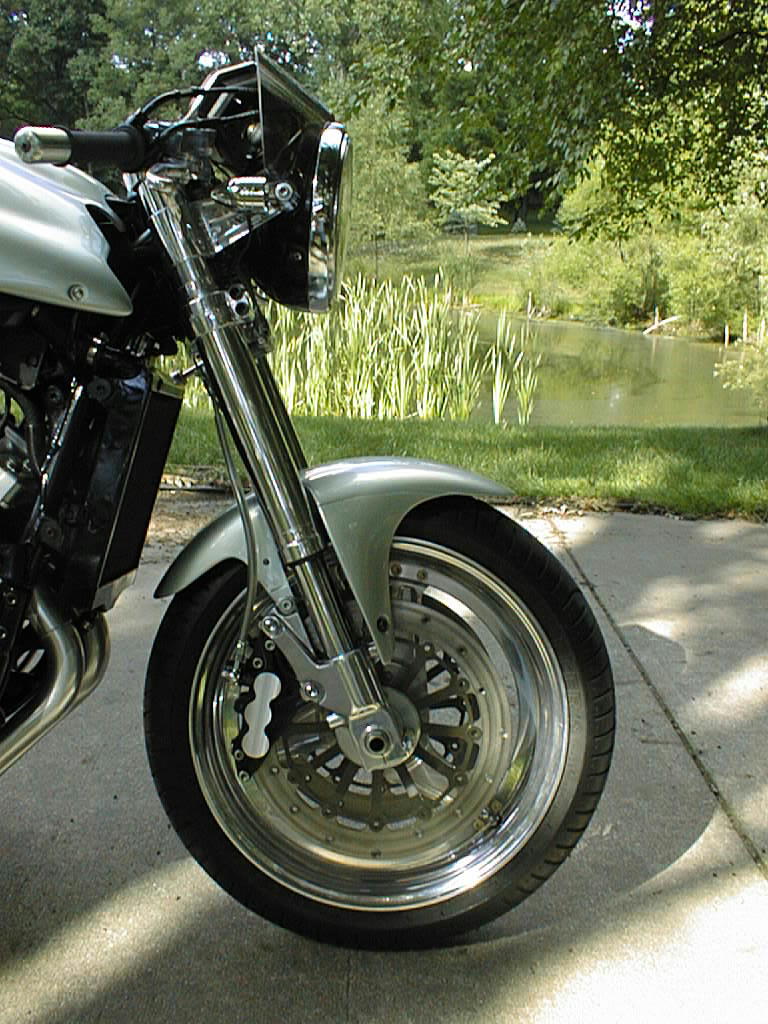

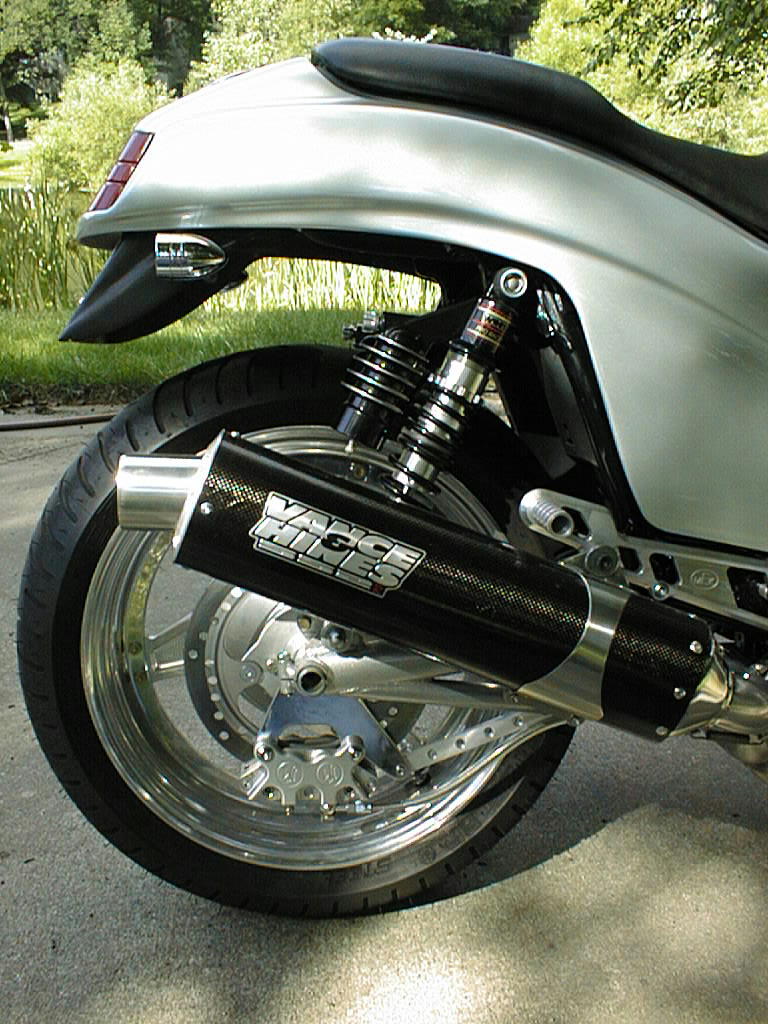

  •    Zilla_Final_Front Fork_Brake.jpg (159658 bytes)      Zilla_Final_Rear Brake.jpg (152934 bytes)

  • Custom PCW 4-1-2 Airborne Ceramic Coated Exhaust in silver with twin Vance & Hines SS2R Carbon Fiber Canisters.

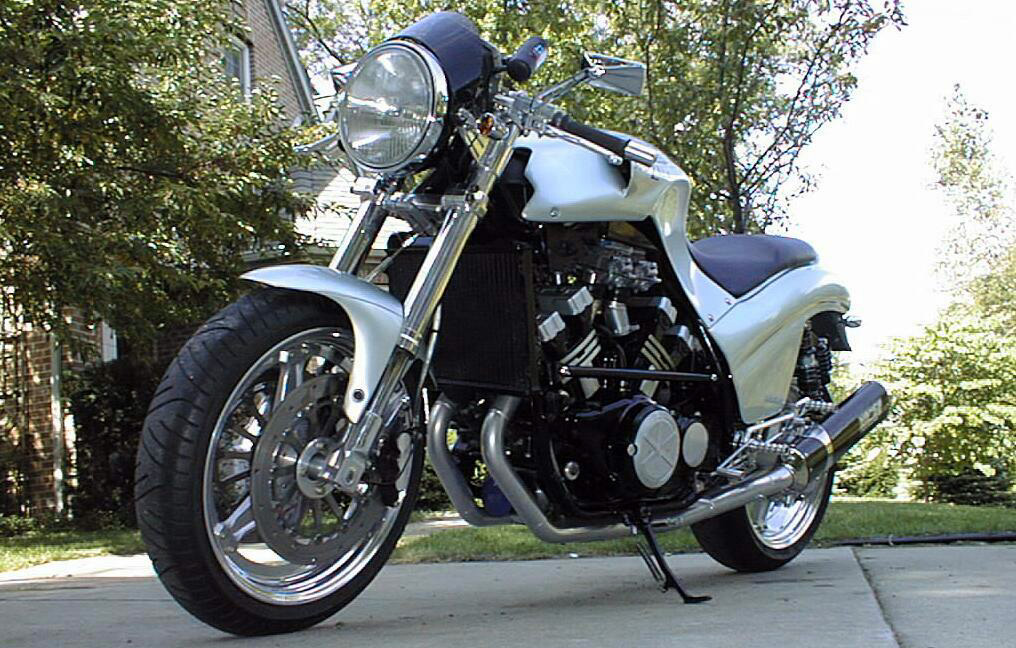

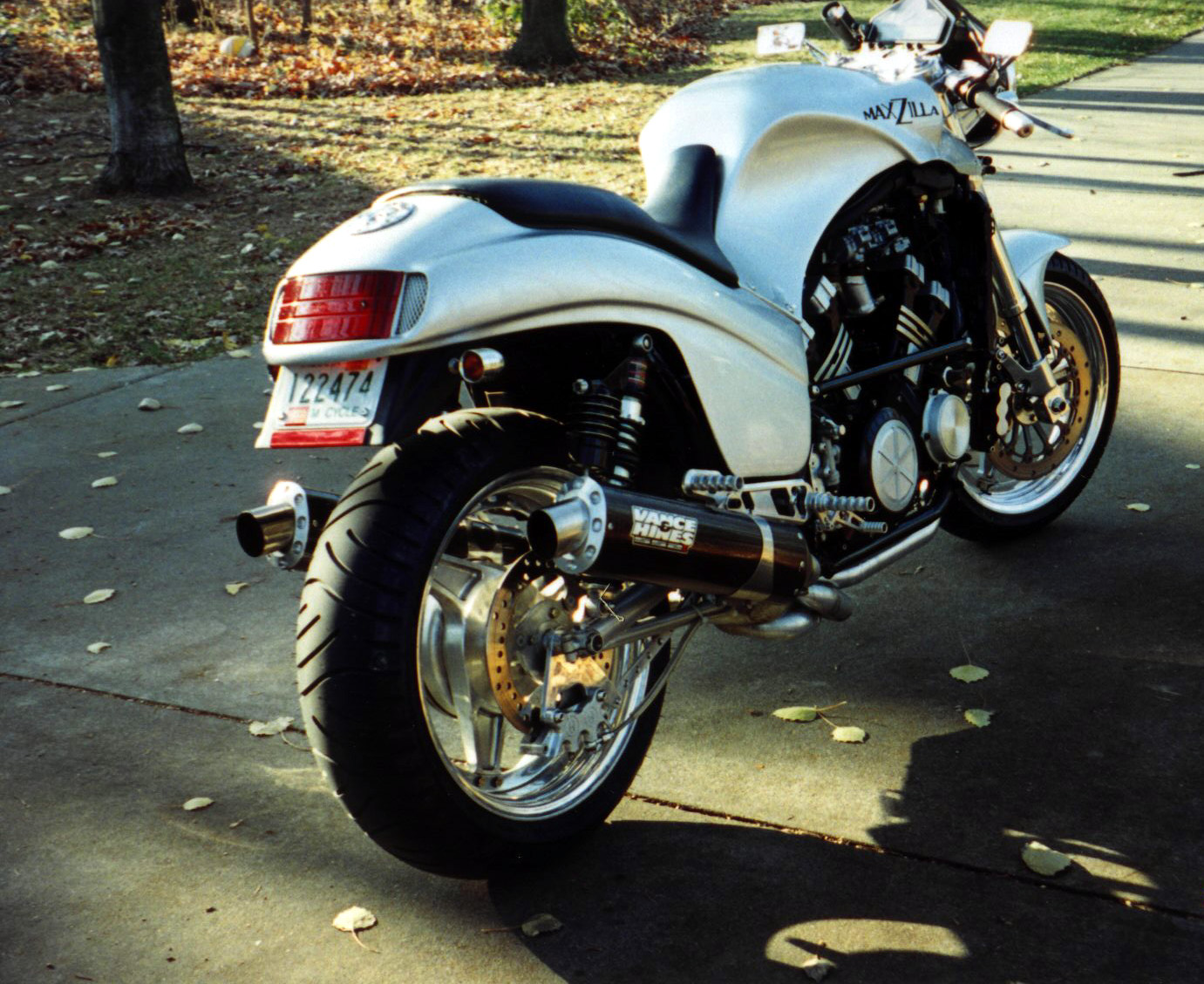

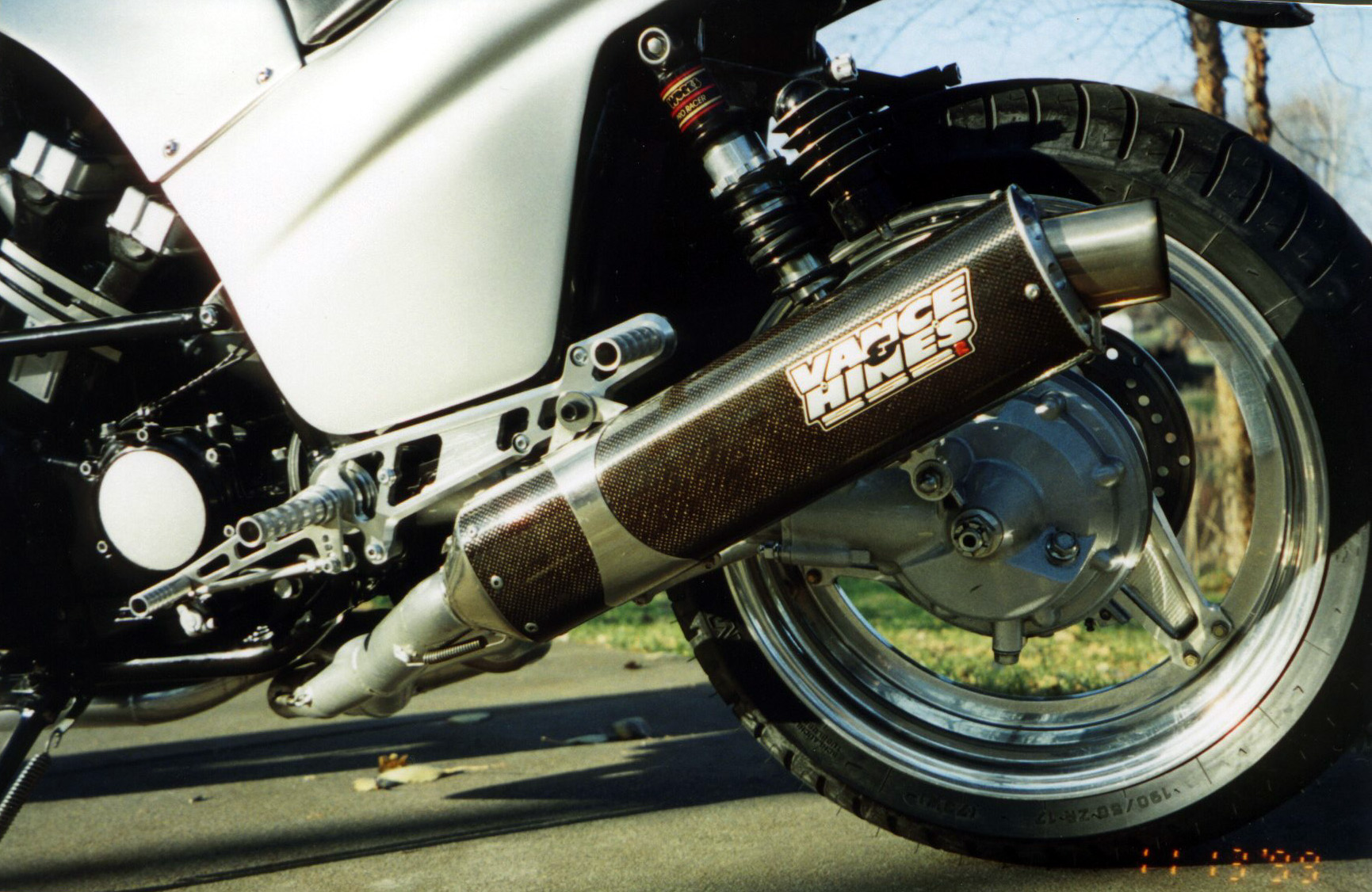

  • MaxZilla Exhaust.jpg (545402 bytes)     MaxZillaRtRr.jpg (495347 bytes)     Zilla_LF.jpg (272402 bytes)

  • Kosman 17" Wheels with 190 mm rear, and 120 mm front, Metzeler Z4 zero-degree steel-belted radials.

  • Works Performance 14" "Pro-Racer" rear shocks. Sport bike type "rear sets" (Exactrep-MEK) with "reverse shifting" ( 1 up, 4 down)

  • Frame Braced, Frame Rail Dowel Pinning, Swingarm Pivot reinforcement with gusseting, Widened and Braced Swingarm, Solid Billet Motor Mounts (PCW), Decreased Rake and custom steering head. Polished HyperPro Steering Damper for GSXR-1100. Clip-Ons with Billet Bar-End weights. PM levers, micro-switches and Brake Cylinders. Stainless Steel Cables.

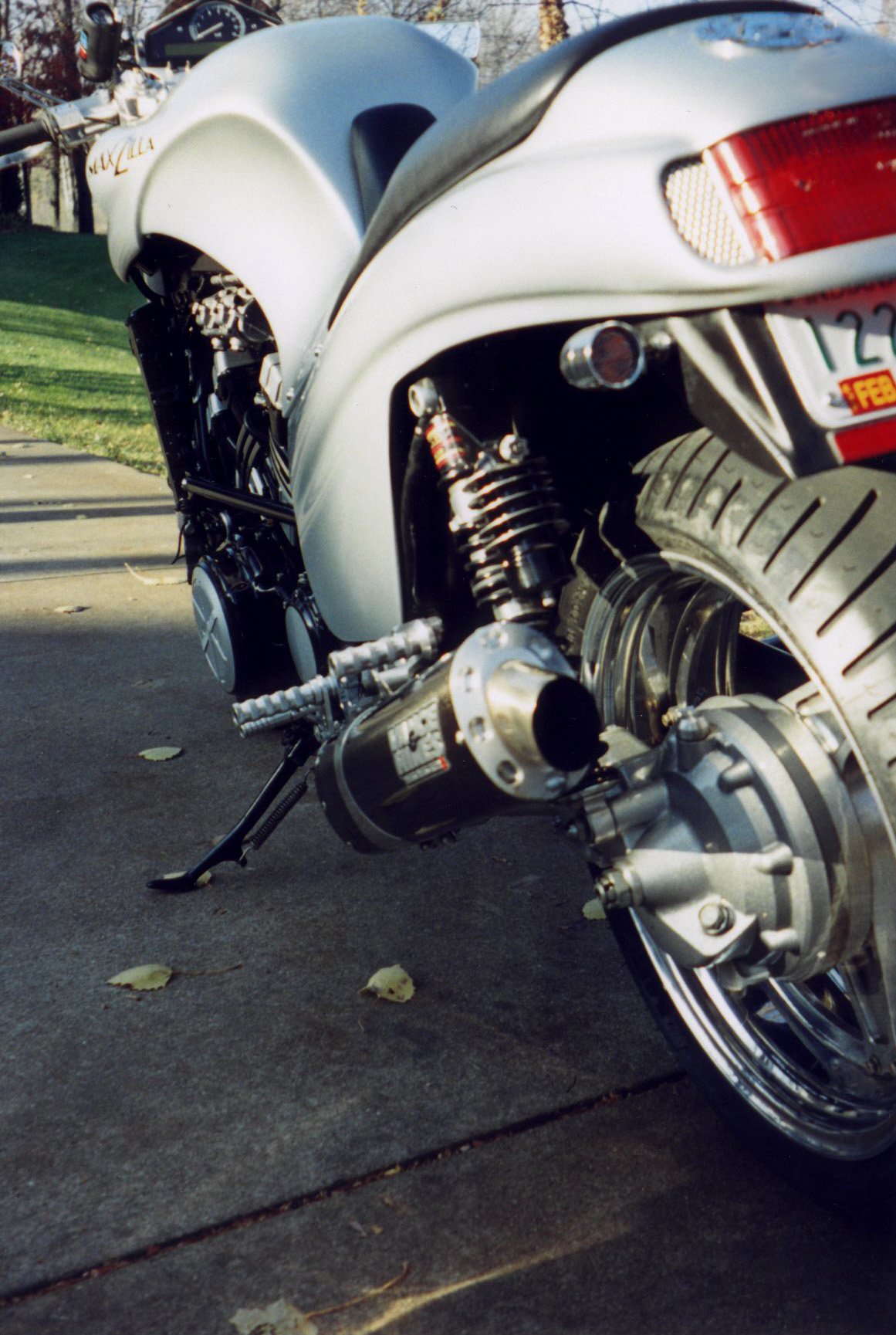

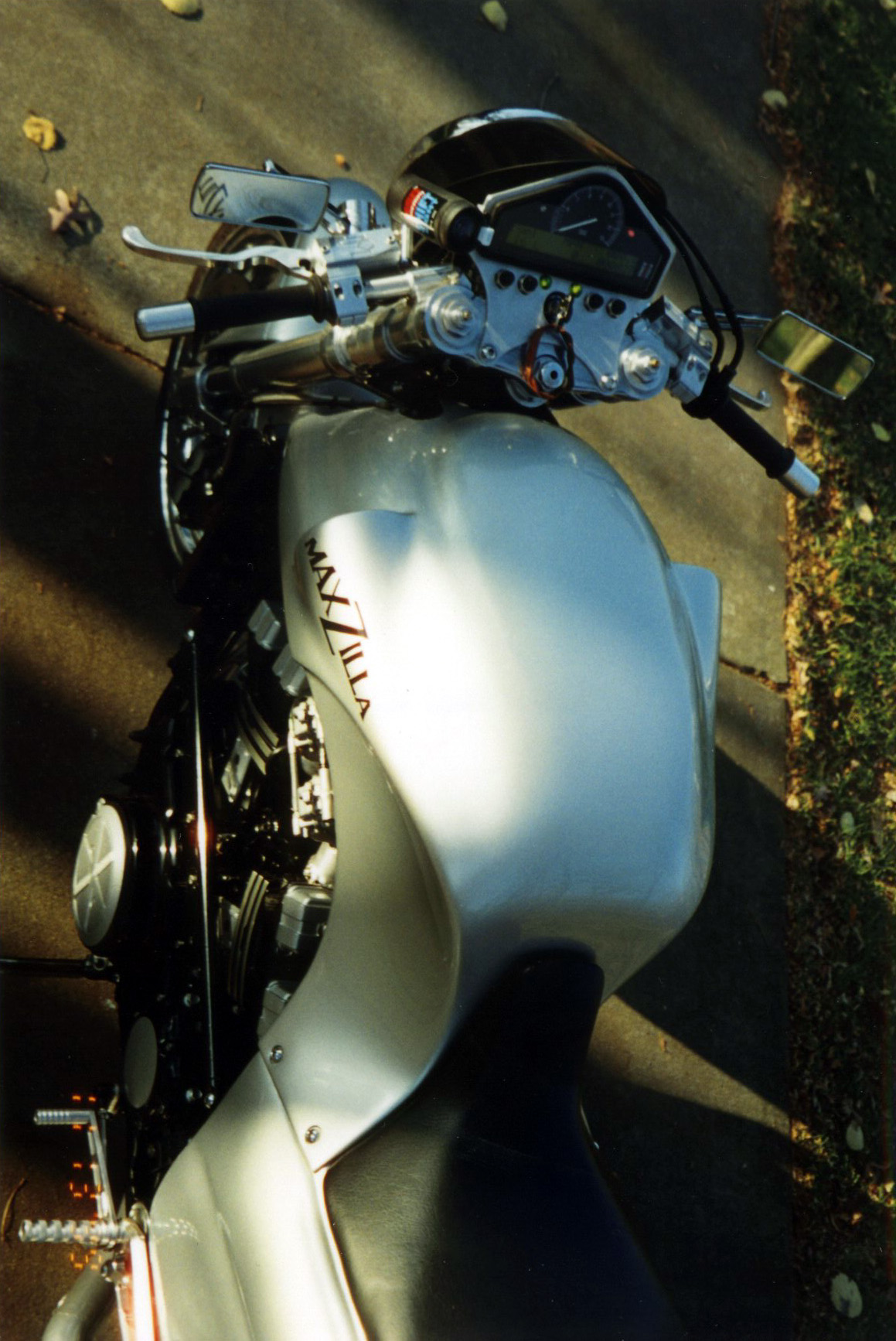

  • EngCover_Instruments.jpg (459924 bytes)    MaxZillaLftRr_extreme.jpg (505566 bytes)

  • Stack Digital Instrumentation, MSD Shift light, Instrument Cowl.

  • Spin-on Oil Filter (Don Smith).  Chrome Aircraft-type gas inlet on rear tail section.

  • Custom Fiberglass bodywork  in "Silver Arrow" paint with multiple layers of clearcoat, Carbon Fiber version to follow, custom seat . Black Powdercoated Frame and Liberal use of silver powder coating elsewhere e.g. valve covers, braced swingarm, pumpkin (differential), engine covers and inserts.

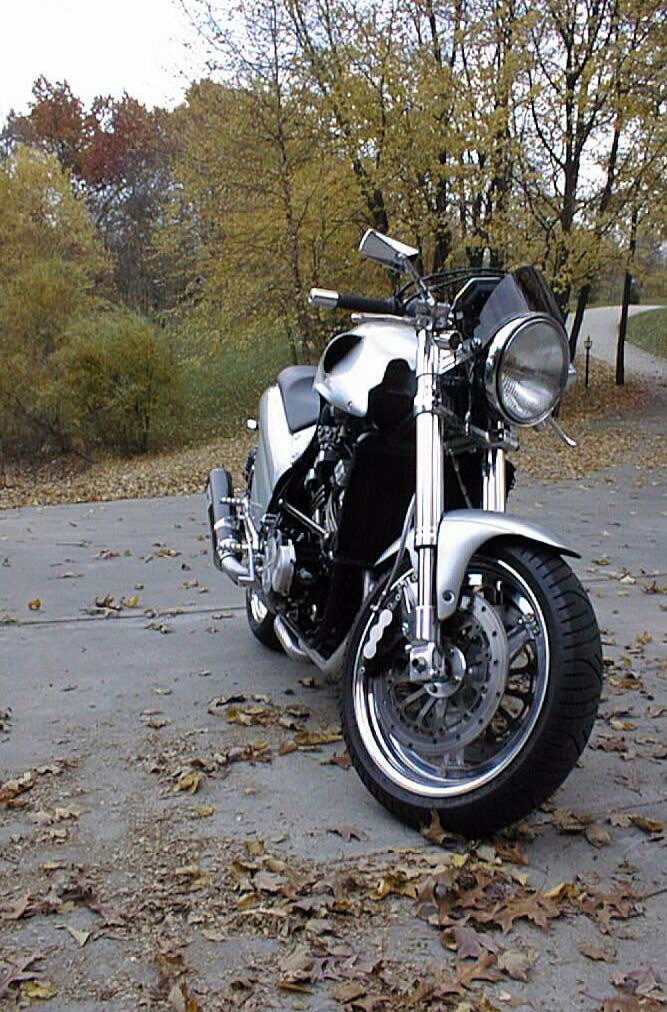

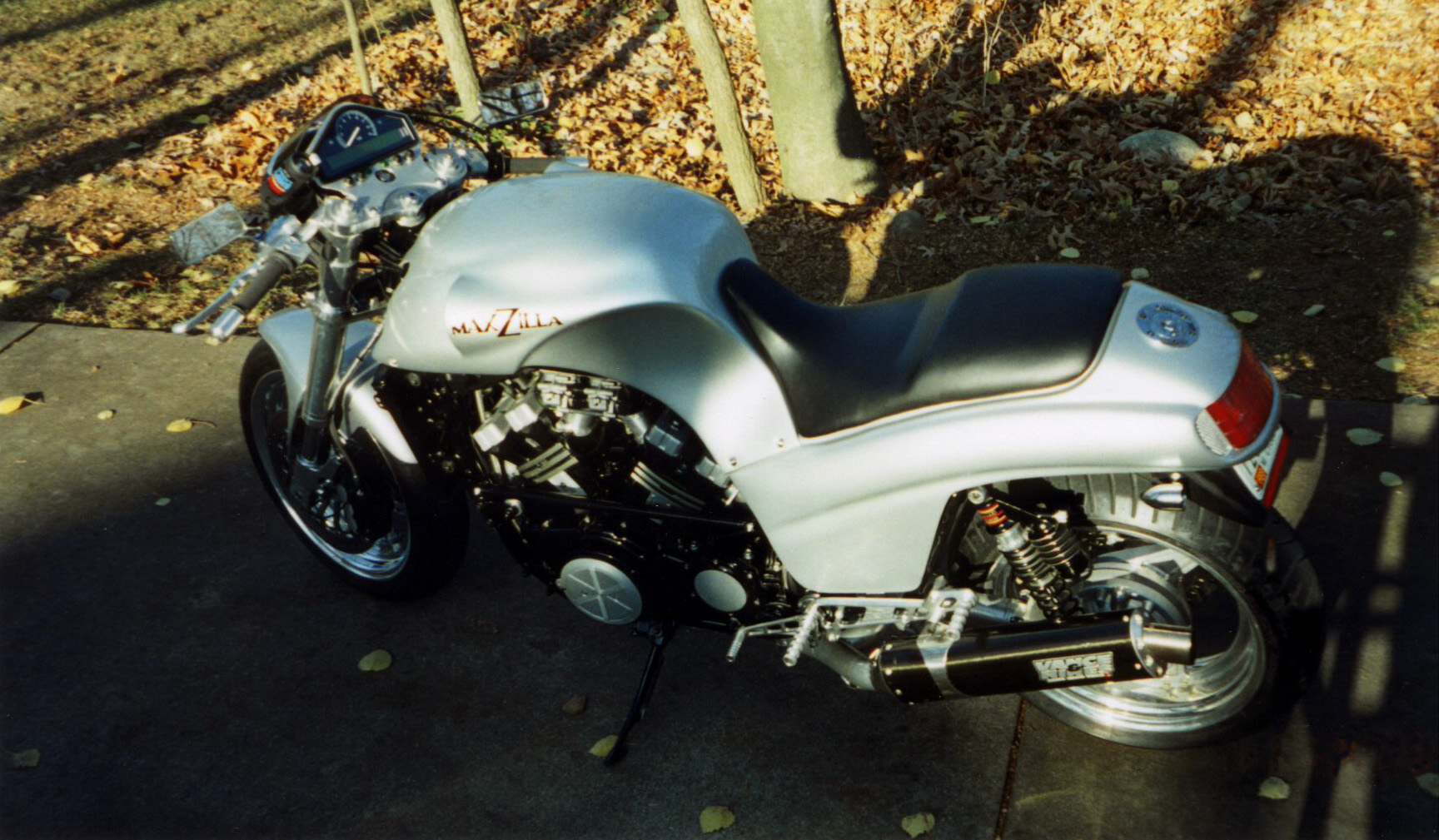

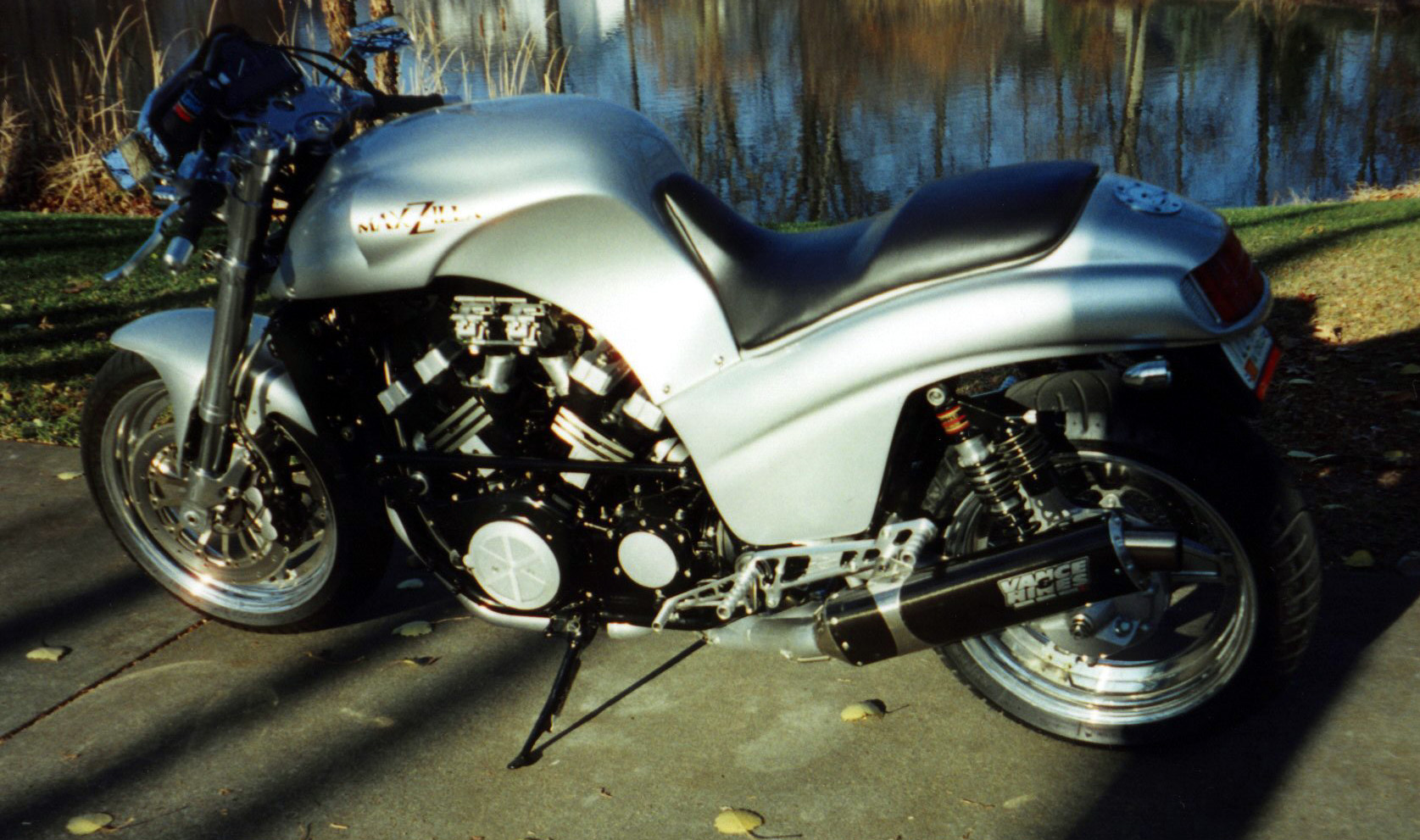

  • MaxZillaLft.jpg (462227 bytes)     MaxZillaLft_top.jpg (534007 bytes)     Zilla and leaves.jpg (271569 bytes)

  • Custom Larger, Suzuki GS1150E ,"Locomotive" Headlight with black powdercoated housing, custom billet turn signals, and various Billet Pieces.

  • "Ram-Air" Effect Engine Cover to be developed into fully functional pressurized, enclosed airbox by UFO Performance Cycles in Phase 2.

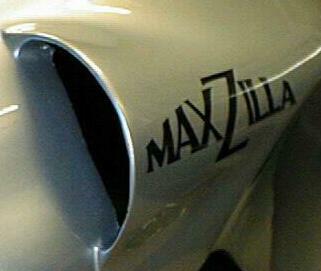

  • ZillaScoop.jpg (13124 bytes)

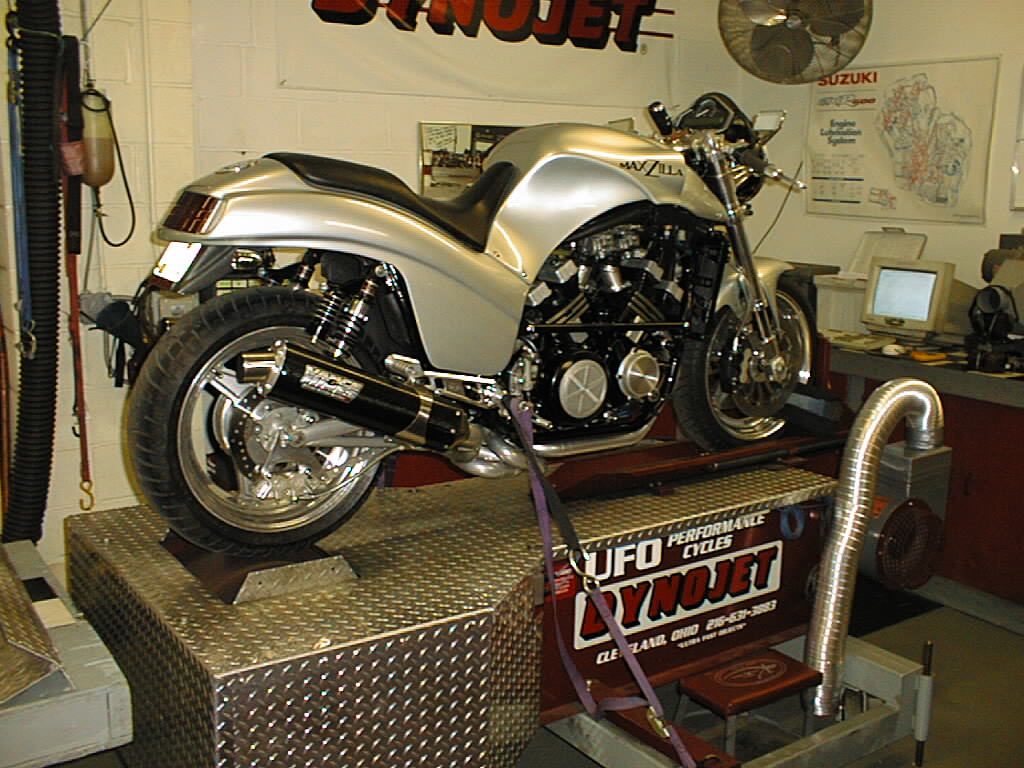

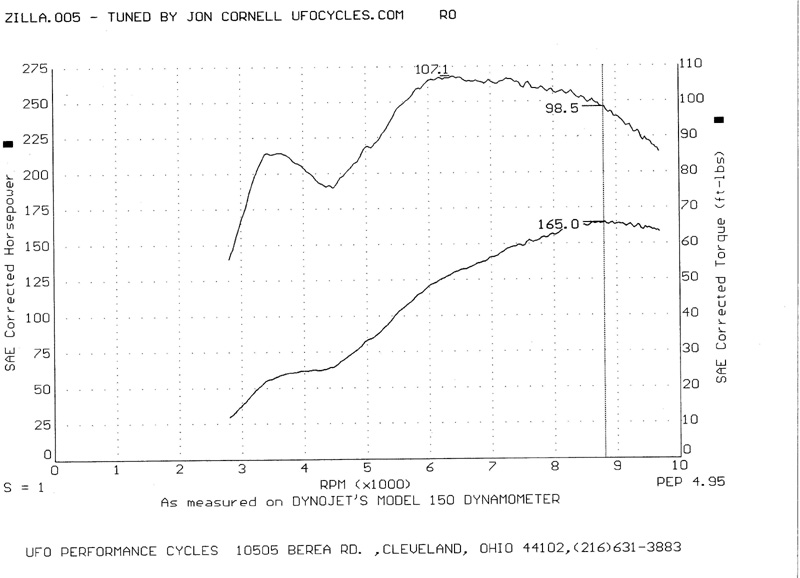

  • Dyno Results         (click to enlarge)       ZillaDyno2_UFO.jpg (124966 bytes)     DynoRt.jpg (148136 bytes)

          Tuning by Jon Cornell of UFO Performance Cycles on 11/12/99  yielded 165 rwhp   and 107.1 ft-lbs torque , which was an increase of 5.8 rwhp, and 3.4 ft-lbs torque from the 159.2 rwhp and 103.7 ft-lbs torque before tuning.

Absolute bar. pressure: 29.14 in. Hg., Vapor press.: 0.24 in. Hg., Intake air temp: 65.7 deg. F. Gear Ratio: 69 RPM/MPH, Correction Factor: 1.00 SAE


Note: The following article in no way reflects my personal feelings of the Hayabusa mentioned. In fact I am an enthusiastic owner of a '00 Blue/ Silver one which proudly shares the garage with 'Zilla and "spars" with his brother in mutual respect.



Some Fresh Air,

    written by John Ganey of PCW Racing in the Dec. 1999 issue of "V-Boost"



Ten years ago, if one of my coworkers told me there was a V-Max in the shop doorway with inverted forks, 27 degree steering head, 165 rwhp and Stack instrumentation I would have sent him outside for a breath of fresh air. A few months back, when it was still warm in the Northland, I turned the corner in my shop only to be confronted by a statement of pure Maxcycling expression. Behold "MaxZilla"! Your first reaction is seeking permission just to be near this bike. Dr. Brilliandt has created an awesome work of mechanical art. Talk about fearless boundary hopping, this two wheeled jewel, has broken new ground leading those brave enough to follow. This is one of those bikes that has a genuine power aura around it demanding major heart rate increases when you tick the start button for the first time. Describing the ride I took on "Zilla" would fill the rest of Steve’s mag so I will regretfully simplify my comments with rock stable feel, quick steering, cool looks from car people, great sound, very light feel and yes it’s FAST!

A strange sadness settled on the shop when we moved aside to let a brand new Hayabusa pull in and park next to "Zilla". To the new Suzuki owner’s disbelief, the mighty "Busa" reeked of cloning and lacked the presence when staged next to Dr. Brilliandt’s creation. After a short bolt on muffler chat the bruised Busa owner backed reverently out of the parking lot, hesitant to start his once dominant mass produced rocket for fear it might sound wimpy in front of the crowd. It’s funny how you can beat another bike without even starting the engine!

One of the many features of  Dr. Brilliandt’s design is the air intake system to feed the carburetors. This is a topic worth volumes. The V-Max, especially those equipped with the Keihin FCR smoothbore, need some kind of air supply directed at them. The stock CV carb can survive with the negative air pressure above it’s air filter caused by road speed siphoning (road speed 70mph) at the fake cavity. The air passing by the scoops and the carb tops at road speed can remove available air from the tank cavity by literally sucking it out. Common strategy (to avoid air starvation)…is to rearrange the electric’s under the left scoop, open the front of it for an air flow source then bring in your buddy who is good at bending sheet metal and make an air system using the tank shell at it’s top. [My insertion here: MaxZilla’s design goes one better by opening up both sides to fresh air, sealing the floor around the velocity stacks, and using the increased volume of the body-tank "shell" as a reservoir for pressurized air. Phase 2 will further evolve the system to a "tuned" sealed-pressure ram-air induction system with pressure and rpm controlled scoop openings.]

Many times the Dyno will show me some big meaty numbers only to go to the drag strip and be disappointed with less than appropriate trap speeds because of this air starvation. This is the big reason why Turbos work so well at the drag strip. Force that air fuel into your V-Max! It will respond with fat numbers at the track. The need for intake air control is so important that the bike we are bringing to Daytona 2000 had its frame designed around the carb air cavity.

(A sad note to pass on from John: "My  good  friend, Larry Lee passed away on December 8th from massive heart failure. Larry, VMOA member 102, was instrumental in the design and road testing of the first Tourmaster 1500cc engine over four years ago…Larry had a never-ending desire to feel his shoulders being pulled from their sockets by what ever he was riding. He will be greatly missed by all who knew him. God speed.")
